Vacuum Conveyor

Product description

The continuous vacuum feeding machine is an automated conveying equipment for powder and granular materials. It achieves efficient and clean transfer through sealed pipelines. This equipment has a compact structure and can seamlessly integrate into the production line. During the conveying process, it effectively prevents dust from spilling out, ensuring a clean production environment and maintaining the stability of material properties. It is easy to operate and can flexibly adapt to different feeding and receiving positions, significantly improving the continuity and automation level of material circulation, and is a reliable and easy-to-maintain industrial conveying solution.

Working principle

The working principle of the vacuum feeding machine is based on negative pressure pneumatic transportation. It achieves sealed material transfer through an automated suction-discharge cycle: Firstly, the system generates a vacuum, which sucks the materials into the storage bin and separates the gas from the materials; then the vacuum is released, and the materials are discharged by gravity; finally, the filter is cleaned by pulse reverse blowing to prepare for the next cycle. The entire process runs automatically and repeatedly, enabling continuous and clean batch transportation.

Product features

1. Clean production environment: Fully enclosed conveying system completely eliminates dust flying, meeting the requirements of clean production and protecting the health of employees.
2. High automation efficiency: Automatically completes the cycle of loading, conveying, and unloading, achieving unmanned operation, significantly improving production efficiency and continuity.
3. Flexible space layout: Compact structure, easy installation, can flexibly adapt to complex production line layouts, optimizing the utilization of workshop space.
4. Good material protection: Uses low-pressure dilute-phase conveying, with little impact on material particles, effectively avoiding material fragmentation, stratification or deterioration.
5. Simple operation and maintenance: Core components are modularized, filter cleaning and replacement are convenient, the system is stable and reliable, and maintenance costs are low.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

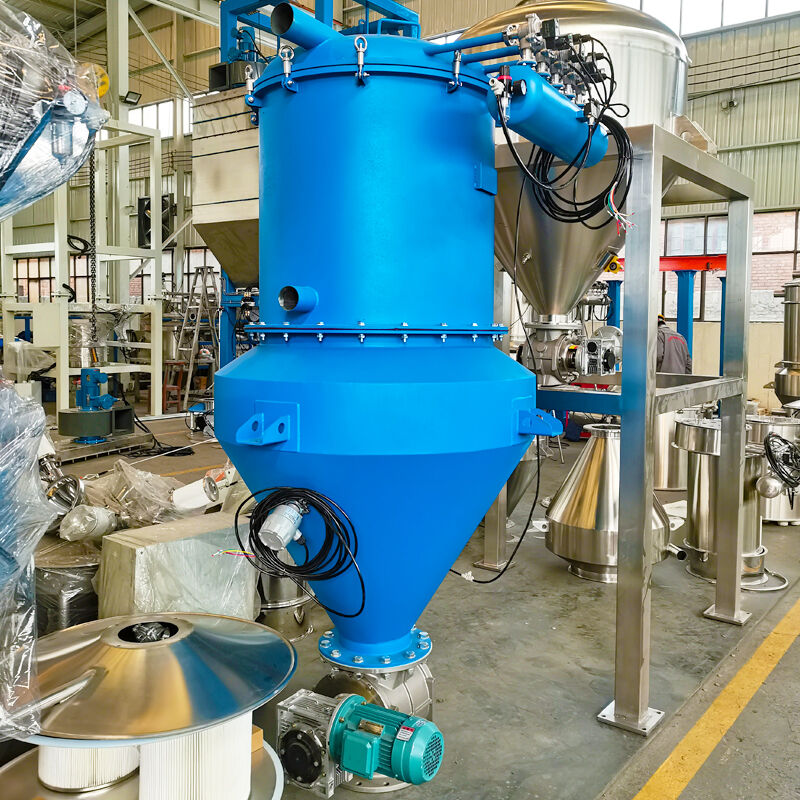

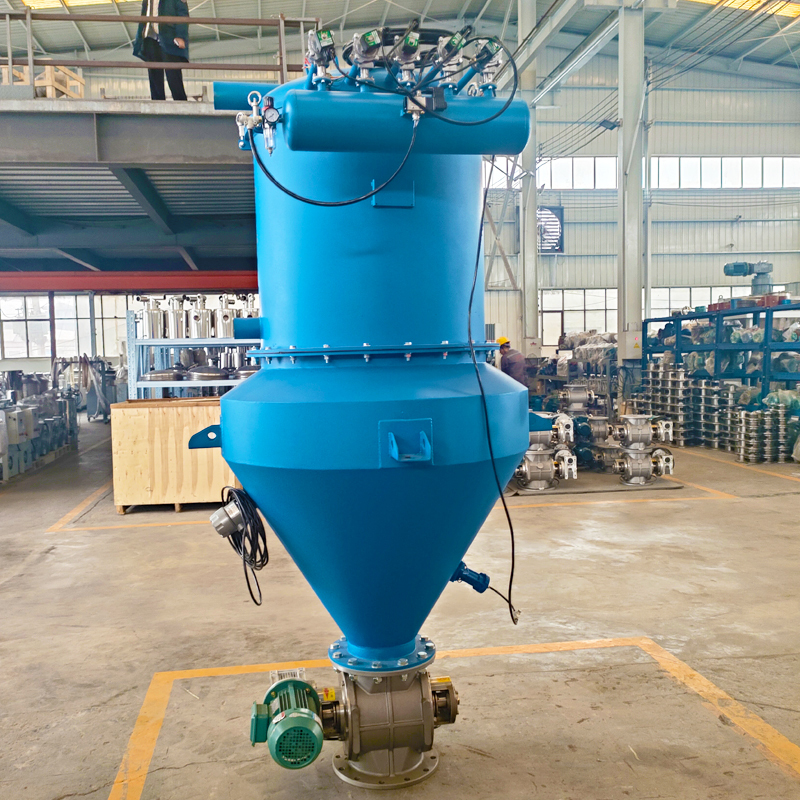

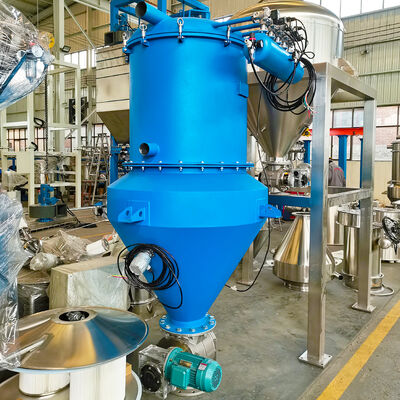

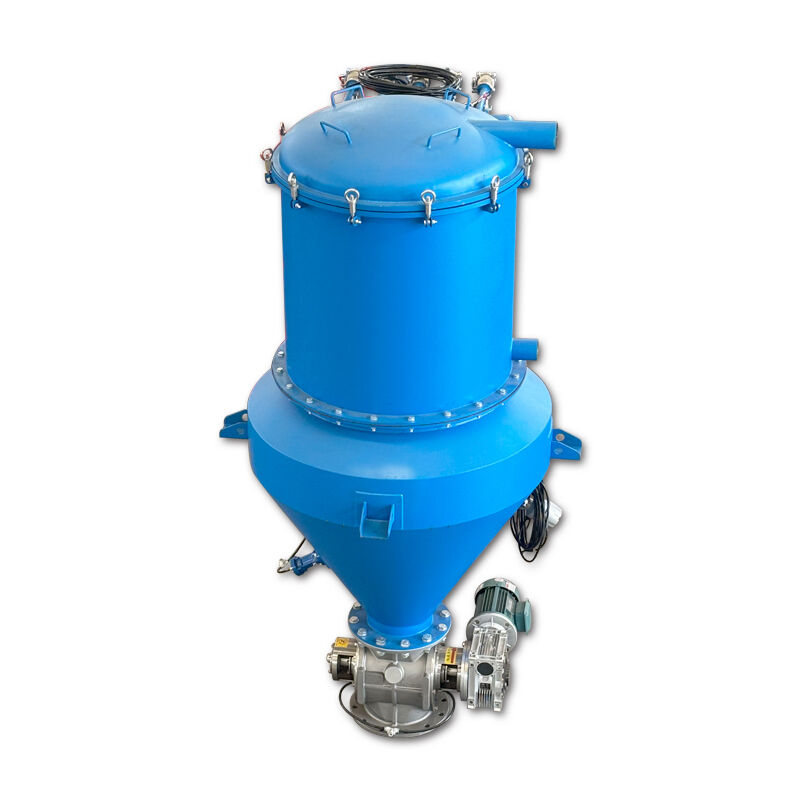

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
