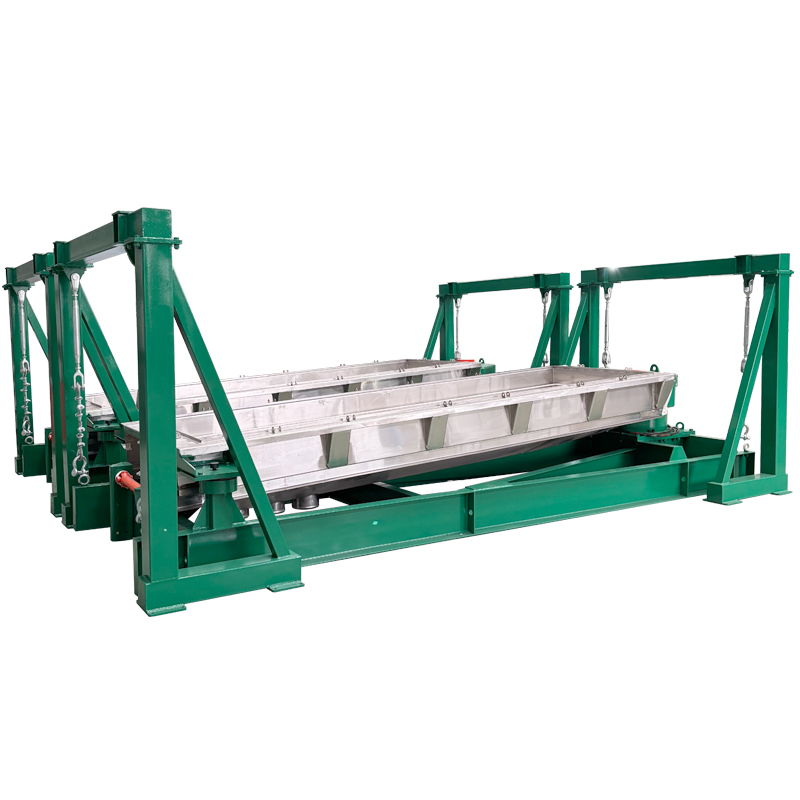

Gyratory Vibrating Screen

Product description

The planar cyclone screen is an efficient and precise screening equipment, widely used in the chemical and food industries, mainly for processing fine powder, micro powder and easily clogging materials. Its structure usually consists of multiple layers of screens, a unique cyclone motion mechanism and a sealed dust-proof cover. With a large screening area and low amplitude characteristics, it can achieve high output and high precision classification operations in a low-noise environment, effectively solving the problems of screening difficult-to-handle adherent and agglomerated materials that traditional vibrating screens cannot handle.


Working principle
The planar cyclone sieve is driven by a motor to activate the eccentric mechanism, causing the sieve box to perform a continuous three-dimensional elliptical rotary motion on the horizontal plane. The materials then undergo a spiral diffusion movement on the sieve surface. This unique gentle acceleration not only enables the material layer to quickly spread out and thin to increase the probability of passing through the sieve, but also effectively breaks the adhesion and agglomeration between particles through continuous relative sliding and rolling, preventing the sieve holes from getting clogged. Ultimately, it achieves efficient and precise classification and discharge of fine powder in a low-amplitude and low-noise environment.

Product Features

1. High precision and efficiency: The low-speed horizontal rotation evenly distributes the materials and prolongs their residence time, with a screening efficiency of over 95%. It is specially designed for the classification of fine and ultra-fine materials.
2. Anti-blockage and anti-sticking: The continuous rotary sliding effectively breaks the agglomeration of materials and the electrostatic adsorption. Combined with the cleaning net device, it perfectly solves the blocking problem of high-humidity and high-viscosity materials.
3. Silent and durable: There is no intense vertical vibration. The operation is stable and low-noise. The wear on the screen is minimal, and the service life can reach 6-12 times that of ordinary vibrating screens.
4. Environmental protection and sealing: The fully enclosed structure prevents dust from spilling out, meeting the strict cleanliness and environmental protection standards of the food and chemical industries.
5. Large capacity and energy saving: It has a strong processing capacity per unit area and low power loss. It significantly reduces energy consumption while ensuring high production output.

Product parameter

Schematic diagram

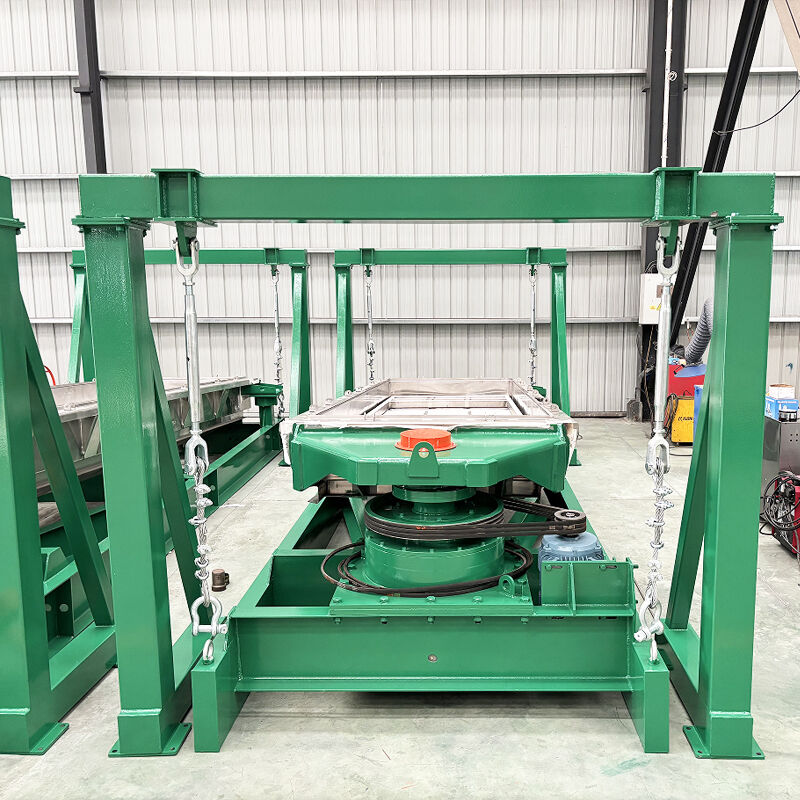

Detail display

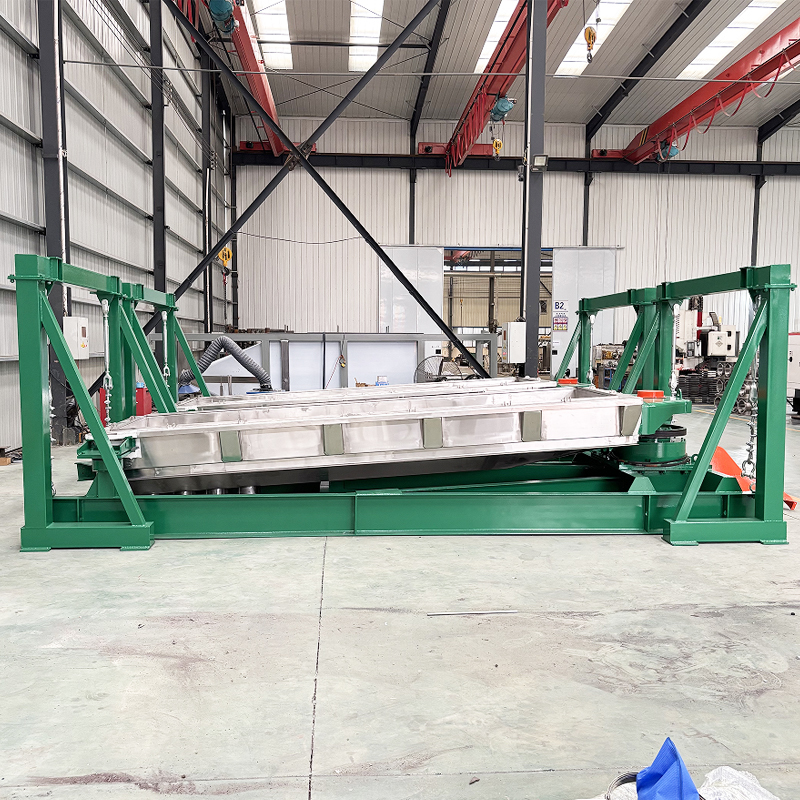

Product display
